Galaksil CN HPLC Column
Galaksil CN columns are based on high surface coverage cyano-modified silica particles. It is designed for separating polar analytes, such as penicillins and steroids.
Main Features
- Well suited for intermediate to high hydrophobic compounds analysis
- Excellent chromatographic peak shape for acidic, basic, and neutral analytes
- Good aqueous compatibility
- Good batch consistency
Specifications
|
Product |
EF- CN 3um | EF- CN 5um | EP- CN 10um |
| Functional Group |
Cyanopropyl |
||
|
Substrate |
Porous, spherical silica particles | ||
| Particle Size | 3μm | 5μm |
10μm |
|
Pore Size |
120Å | ||
| Surface Area |
330m2/g |
||
|
Carbon Content |
7% | ||
| End-capped |
Yes |
||
|
Pressure Limit |
4000psi for 10um
5000psi for 5μm 6000psi for 3um |
||
| Temperature Limit |
60℃ |
||
|
pH Range |
2-8 | ||
| Aqueous Compatibility |
95% aqueous |
||

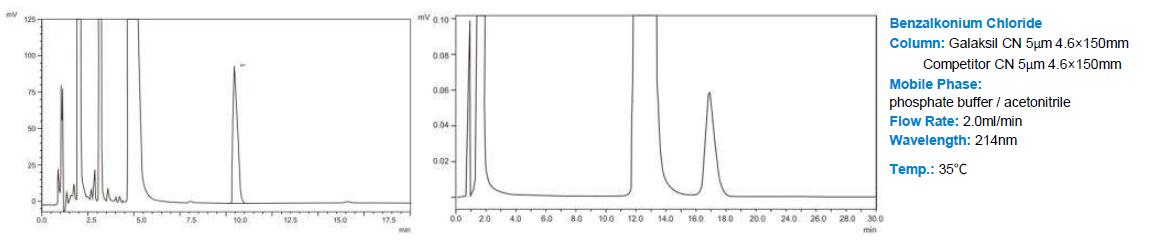

Application
Order Information
|
Product Name |
Length (mm) | Inner-diameter (mm) | |
| 4.6mm |
4.0mm |
||
| EF-CN 5um 120A | 250 | 704-05012-004625 | 704-05012-004025 |
| 150 | 704-05012-004615 | 704-05012-004015 | |
| 100 | 704-05012-004610 | 704-05012-004010 | |
| 50 | 704-05012-004605 | 704-05012-004005 | |
| EP-CN 10um 120A | 250 | 704-10012-004625 | 704-10012-004025 |
| 150 | 704-10012-004615 | 704-10012-004015 | |
| 100 | 704-10012-004610 | 704-10012-004010 | |
| 50 | 704-10012-004605 | 704-10012-004005 | |
|
Product Name |
Length (mm) |
2.1mm |
|
| EF-CN 3um 120A | 150 | 704-03012-002115 | |
| 100 | 704-03012-002110 | ||
| 50 | 704-03012-002105 | ||
